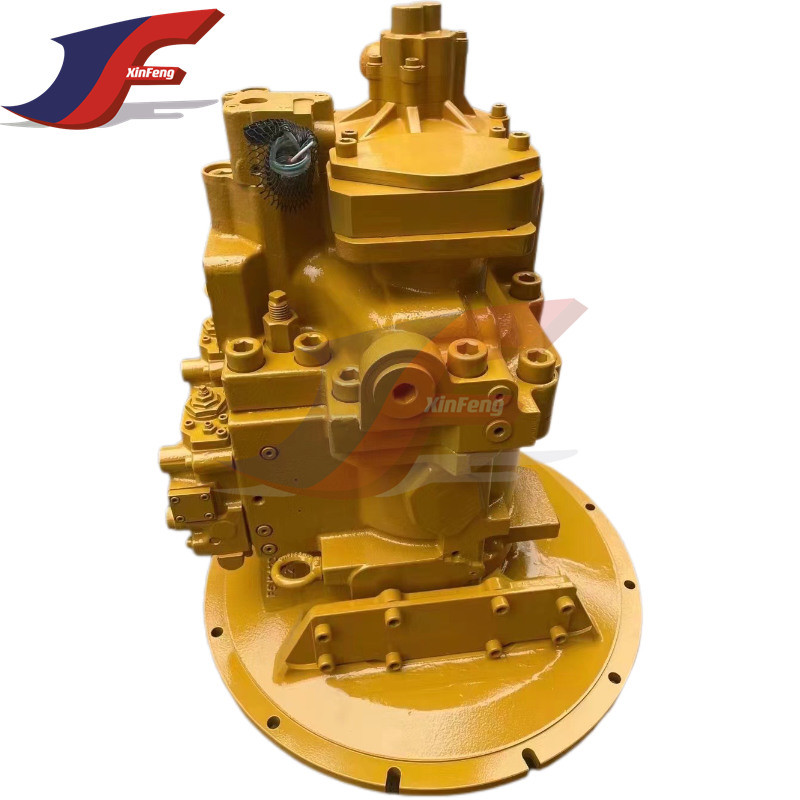

345D E349D Hydraulic Main Pump 295-9663 Hydraulic Pump K5V212 for excavator
Product Descriptio
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 295-9693 | [1] | BEARING-NEEDLE | |
| 2 | 252-9167 M | [8] | BOLT-SOCKET HEAD (M8X1.25X30-MM) | |
| 3 | 247-8985 | [4] | DOWEL | |
| 4 | 247-8729 | [2] | COVER | |
| 5 | 242-6919 M | [2] | SETSCREW (M20X2.5X56-MM) | |
| 6 | 451-2184 M | [2] | NUT (M20X2.5-THD) | |
| 7 | 6V-8200 M | [8] | BOLT-SOCKET HEAD (M12X1.75X35-MM) | |
| 8 | 7I-8166 | [2] | STOPPER | |
| 9 | 109-1296 | [2] | SEAL-O-RING | |
| 10 | 7I-8172 | [2] | RING-BACKUP | |
| 11 | 242-6914 | [2] | PISTON-SERVO | |
| 12 | 247-8712 | [2] | PIN AS | |
| 13 | 295-9506 | [18] | SPRING | |
| 14 | 109-1294 | [2] | SEAL-O-RING | |
| 15 | 7I-8171 | [2] | RING-BACKUP | |
| 16 | 242-6915 | [2] | STOPPER | |
| 17 | 095-0965 | [12] | PLUG | |
| 18 | 095-0966 | [2] | PLUG | |
| 19 | 242-6918 M | [2] | NUT (M20X2.5-THD) | |
| 20 | 200-3292 M | [2] | SETSCREW (M20X2.5X90-MM) | |
| 21 | 249-1308 M | [1] | BOLT-SOCKET HEAD (M22X2.5X180-MM) | |
| 22 | 234-4539 | [2] | DOWEL | |
| 23 | 249-1306 M | [9] | BOLT-SOCKET HEAD (M22X2.5X60-MM) | |
| 24 | 326-4415 | [2] | GASKET | |
| 25 | 295-9518 | [2] | PISTON AS | |
| 26 | 110-5525 | [4] | PLUG | |
| 27 | 214-7568 | [4] | SEAL-O-RING | |
| 28 | 295-9510 | [2] | PLATE | |
| 29 | 295-9504 | [2] | PLATE | |
| 30 | 295-9505 | [2] | RETAINER-BALL | |
| 31 | 295-9521 | [2] | SWASHPLATE AS | |
| 32 | 7I-8084 | [21] | PLUG | |
| 33 | 7I-8164 | [4] | ORIFICE (1/16-NPTF) | |
| 34 | 095-0882 | [4] | PIN-SPRING | |
| 35 | 247-8786 | [2] | DOWEL | |
| 36 | 347-6530 | [9] | SEAL-RECTANGULAR | |
| 37 | 295-9695 | [1] | SEAL-LIP TYPE | |
| 38 | 095-0944 | [1] | RING-RETAINING | |
| 39 | 249-6657 | [1] | SEAL-O-RING | |
| 40 | 295-9508 | [1] | GEAR-DRIVE (31-TEETH) | |
| 41 | 295-9509 | [1] | GEAR-DRIVEN (31-TEETH) | |
| 42 | 8T-4241 | [2] | RING-RETAINING | |
| 43 | 295-9501 | [1] | SPACER (49.5X73X3-MM THK) | |
| 44 | 295-9507 | [1] | FLANGE | |
| 45 | 096-5516 | [2] | RING-RETAINING (EXTERNAL) | |
| 46 | 8T-0343 M | [11] | BOLT-SOCKET HEAD (M12X1.75X55-MM) | |
| 47 | 295-9502 | [2] | SPACER (55X69X3-MM THK) | |
| 48 | 295-9516 | [1] | RING | |
| 49 | 295-9503 | [1] | SPACER (104X120X3.2-MM THK) | |
| 50 | 295-9500 | [1] | BEARING-ROLLER | |
| 51 | 295-9511 | [1] | PLATE | |
| 52 | 295-9499 | [1] | SHAFT-DRIVEN | |
| 53 | 322-8736 | [1] | BODY | |
| 54 | 311-9506 | [1] | BARREL AS-PUMP | |
| 55 | 247-8715 | [1] | BEARING-NEEDLE | |
| 56 | 247-8721 | [1] | IMPELLER | |
| 57 | 247-8730 | [1] | RING-RETAINING | |
| 58 | 247-8944 | [1] | BUSHING | |
| 59 | 295-9694 | [1] | BLOCK-PORT | |
| 60 | 249-1307 M | [2] | BOLT-SOCKET HEAD (M22X2.5X95-MM) | |
| 61 | 311-9505 | [1] | BARREL AS-PUMP | |
| 62 | 247-8719 | [1] | SPACER (50X64X3-MM THK) | |
| 63 | 247-8725 | [1] | PLATE | |
| 64 | 247-8713 | [1] | BEARING-ROLLER | |
| 65 | 8T-9080 M | [8] | BOLT-SOCKET HEAD (M12X1.75X20-MM) | |
| 66 | 249-6670 | [1] | SEAL-O-RING | |
| 67 | 295-9512 | [1] | COVER | |
| 68 | 247-8720 | [1] | SPACER (95X110X3.2-MM THK) | |
| 69 | 247-8787 | [1] | RING-RETAINING | |
| 70 | 247-8717 | [2] | SPACER (65X90X1-MM THK) | |
| 71 | 095-0929 | [2] | RING-RETAINING | |
| 72 | 247-8726 | [1] | COVER | |
| 73 | 295-9498 | [1] | SHAFT-DRIVE | |
| 74 | 206-9291 | [2] | SEAL-O-RING | |
| 75 | 295-9517 | [1] | DOWEL | |
| 76 | 295-9497 Y | [2] | HEAD GP-PUMP | |
| 77 | 289-7912 Y | [1] | PUMP GP-GEAR (PILOT) | |
| 78 | 225-4518 Y | [1] | VALVE GP-SOLENOID (PUMP CONTROL) | |
Maintainance
Carter excavator is a heavy-duty construction machinery, and regular maintenance is very important for its normal operation and extended service life. Here are some maintenance recommendations for Carter excavators:
Cleaning: Regularly clean the external and internal parts of the excavator, including the body, engine, hydraulic system, etc. Use a high-pressure water gun or air pressure spray gun to remove dust, mud and other debris.
Lubriion: Make sure that all lubriion points of the excavator are properly lubried. Use appropriate lubricants and lubrie according to the manufacturer's recommendations.
Hydraulic system: Regularly check the oil level and oil quality of the hydraulic system. If necessary, replace the hydraulic oil and check whether the seals of the hydraulic system are intact. Ensure the normal operation of the hydraulic system to avoid failures and leaks.
Engine: Regularly replace the engine oil and filter. Check the water level and quality of the coolant and ensure the normal operation of the cooling system. Regularly check the engine's belts, batteries and wire connections to ensure that they are working properly.
Air system: Check the excavator's air system, including the air filter and air intake. Clean or replace blocked or damaged filters, and ensure that the air intake is unobstructed to keep the engine running normally.
Tires or tracks: Check the wear of the excavator's tires or tracks and replace them as needed. Ensure the proper condition of the tires or tracks to provide good traction and stability.
Control system: Regularly check the excavator's control system, including joysticks, pedals and dashboard. Ensure that all controllers and instruments are working properly and repair any malfunctions in a timely manner.
About Xinfeng Machinery (XF) parts:
Advantages
Warehouse Display
Packaging and Delivery
FAQ
1. How to quickly and accurately buy products what lneeded?
A: Provide the original parts number to us to check.
2. How long have you been in the excavator
A: We are engaged in excavator parts since 1998
3. lfI don't know the part number,what shouldI do?
A: Please send us size and pictures of old products.
4. What is the warranty of the products?
A: The warranty is 6/12 Months based on the specific product.
5. How long is your delivery time?
A: The normal delivery time is 3-5 days for stock sproductsafter getting payment. lf not in stock, we will inform you thetime requlred.
6. Which shipping term you can supply?
A: By sea,air or by express ( DHL,Fedex,TNT,UPSEMS)
7. What is your MOQ?
A: Small order and sample order are acceptable
8. Do you have any After-Sales service?
A: Yes!Our
